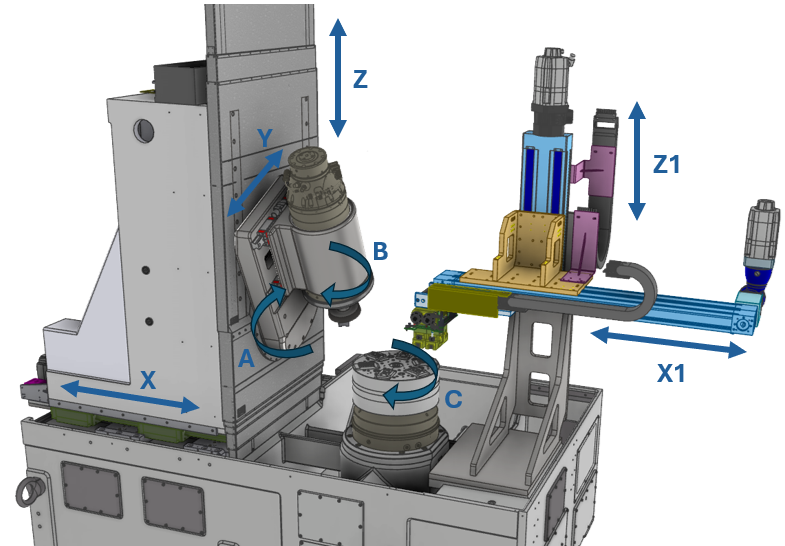

CS260
Fully automatic workpiece handling via gantry loader
High-rigidity machine design for maximum precision
Full control of all axes during machining
Compact design with excellent accessibility
Standardized spindle mounting for high flexibility
Development of highly specialized machine tools
Fully automatic workpiece handling via gantry loader
High-rigidity machine design for maximum precision
Full control of all axes during machining
Compact design with excellent accessibility
Standardized spindle mounting for high flexibility
Equipped with clamping devices and tools
A11 for fixtures, HSK100 for tools
Siemens SINUMERIK ONE control system
| Name | Unit | Parameter | |
Workpiece | Maximum Module | 5 | mm |
Maximum Machining Inner Diameter | 350 | mm | |
Maximum Machining Outer Diameter | 240 | mm | |
Work Area | Radial Travel (Center Distance) | 0 ... 240 = 240 | mm |
Axial Travel | 200 ... 800 = 600 | mm | |
Tool Spindle | Tool Speed (Rated / Max.) | 1600 (10 000) | rpm |
Power at 40% / 100% Duty Cycle | 59 / 44 | kW | |
Torque at 40% / 100% Load | 334 / 264 | Nm | |
Swivel Angle | +/- 25 | ° | |
Tangential Stroke | 150 | mm | |
Tool Interface, Standard | HSK-A100 | ||
Maximum Tool Diameter | approx. 225 | mm | |
Worktable | Speed – Rated (Max.) | 1150 (5000) | rpm |
Nominal Power | 38.5 | kW | |
Torque – Rated (Max.) | 320 (535) | Nm | |
Interface | Spindle Nose | ISO-702-1 | |
DIN 55026 | A11 | ||
Maximum Total Worktable Load | 20 | kN | |
For maximum workpiece weight, see gantry loader specifications. | |||
Axis Speeds | Radial Speed (X‑axis) | 10 000 | mm/min |
Tangential Speed (Y‑axis) | 2500 | mm/min | |
Axial Speed (Z‑axis) | 7000 | mm/min |
