High-efficiency hobbing machine with integrated chamfering process
H200C-H400C
Parallel main-time machining for hobbing & chamfering
Chamfer cutting for spur gears, helical gears and matching shafts
Flexible tool concept
Direct drives for tool spindle and worktable
Integrated alignment unit
Automation system with integrated loader
Chamfer cutting for spur gears, helical gears and matching shafts
Flexible tool concept
Direct drives for tool spindle and worktable
Integrated alignment unit
Automation system with integrated loader
Advantages and Features
Parallel main-time machining for hobbing & chamfering
Chamfer cutting for spur gears, helical gears and matching shafts
Flexible tool concept
Direct drives for tool spindle and worktable
Integrated alignment unit
Automation system with integrated loader
Dry or wet machining
Programming integrated into the hobbing machine’s operating dialogue
Easy maintenance and servicing
Small footprint
Parameters
H200C-H400C
| Name | Unit | Parameter |
|---|---|---|
| Maximum workpiece diameter | mm | 80-200 |
| Nominal module | mm | 5 |
| Radial feed (X‑axis) | mm | 10-150 |
| Axial feed (Z‑axis) | mm | 100-450 |
| Tangential feed (Y‑axis) | mm | 200 |
| Hob spindle power | kw | 15 |
| Hob spindle speed (B‑axis) | min | 250-3500/250-5000 |
| Hob head swivel angle (A‑axis) | degree | +/- 45 |
| Maximum hob diameter | mm | 100 |
| Maximum shank‑type hob length (cutting / total length) | mm | 225 / 285 |
| Maximum bore‑type hob total length | mm | 180 |
| Worktable speed (C‑axis) | r/min | 10-1000 |
| Machine control | Siemens 840D sl | |
| CNC axes of basic machine | 6 | |
| Total weight of basic machine | kg | Approx. 7500 |
| Dimensions of basic machine [L × W × H] | mm | Approx. 3600x2600x2850 |
Typical Workpieces
You may also be interested in the following products
Efficient Internal and External Machining for Cylindrical Gears

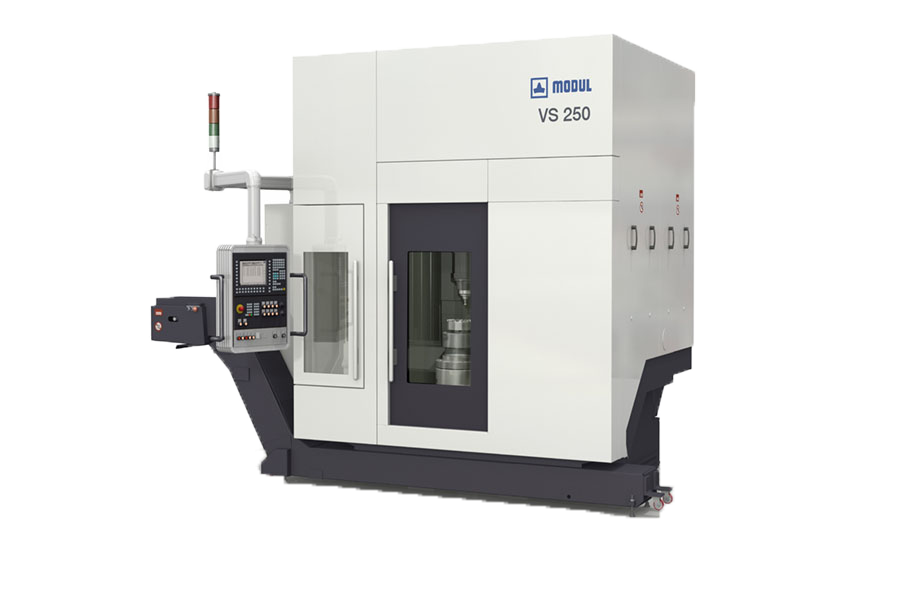

VS250
Improved machine concept for efficient production of internal and external gears
Experience and proven advantages of MODUL hobbing machines, combined with FEM-optimized machine components
Dry machining or wet machining with oil cooling or emulsion
Machining of soft and hard materials
Maximum Module (mm)：6
Maximum Workpiece Diameter (mm)：250
A Compact and High-Performance Gear Skiving Machine
CS260
Development of highly specialized machine tools
Fully automatic workpiece handling via gantry loader
High-rigidity machine design for maximum precision
Full control of all axes during machining
Compact design with excellent accessibility
Standardized spindle mounting for high flexibility
Maximum Module (mm)：5
Maximum machining inner diameter (mm)：100
