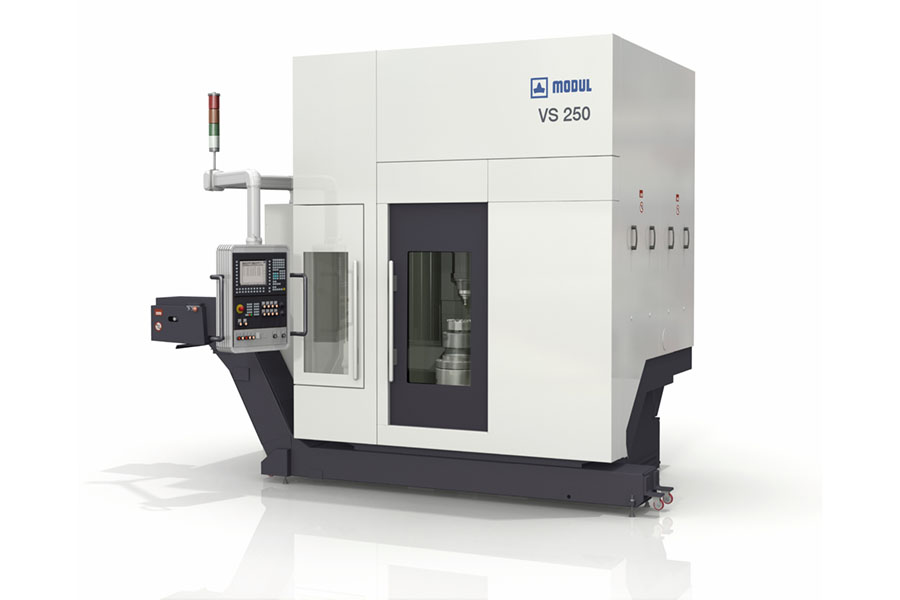

VS250
Experience and proven advantages of MODUL hobbing machines, combined with FEM-optimized machine components
Dry machining or wet machining with oil cooling or emulsion
Machining of soft and hard materials
Improved machine concept for efficient production of internal and external gears
Experience and proven advantages of MODUL hobbing machines, combined with FEM-optimized machine components
Dry machining or wet machining with oil cooling or emulsion
Machining of soft and hard materials

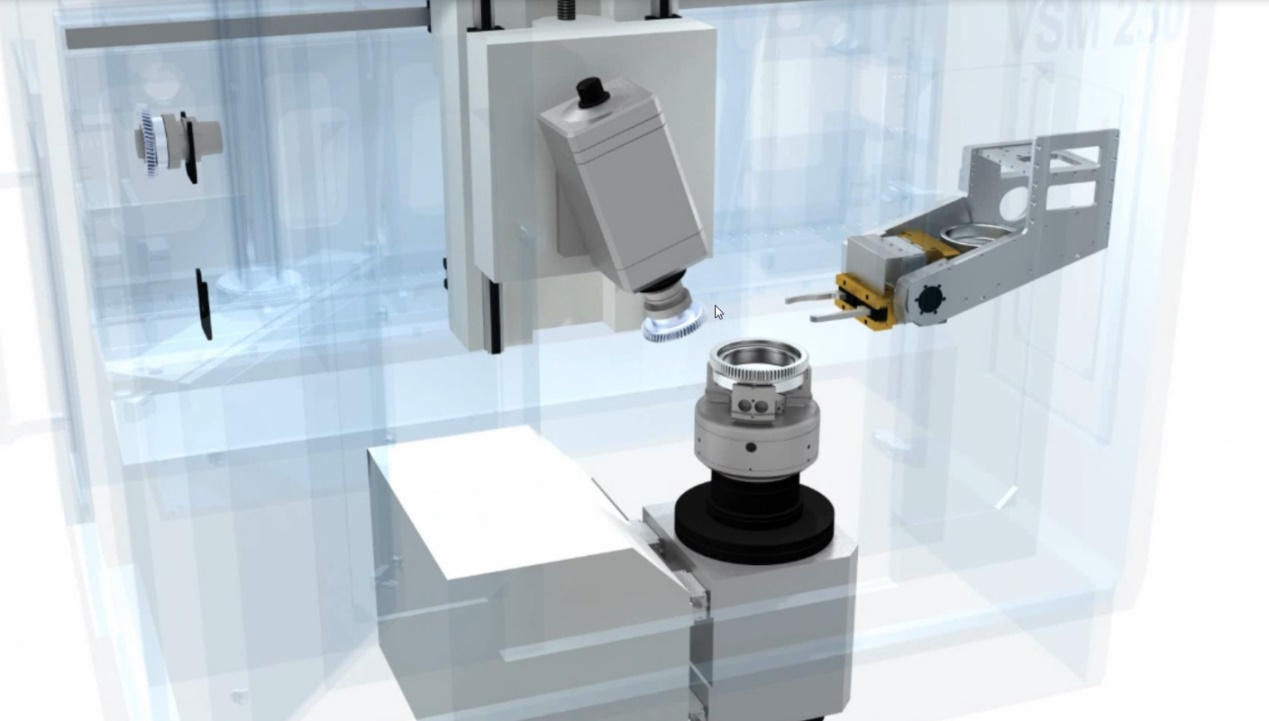

Tool spindle with additional Hirth coupling indexing enables the use of turning tools via HSK connection
Integrated tool storage unit allows additional complex operations such as gear chamfering and deburring
Software package to support the complete process chain
Optional counter-column tailstock for shaft workpieces
| Name | Unit | Parameter |
Maximum module | mm | 6 |
Maximum workpiece diameter | mm | 250 |
Main spindle interface | size | A11 |
Maximum main spindle power | kW | 80 |
Maximum main spindle speed | rpm | 4000 |
Tool spindle interface | size | HSK or Capto |
Maximum tool spindle speed | rpm | 8000 |
Tool storage | Number of positions | 6 |
