Hobbing machine series
Our combination meets your requirements
-
Small Hobbing Machine
H80-H200
The multi-functional truss manipulator can directly pick up and deliver workpieces from different workpiece storage systems or automation devices, and this structure is also very easy to be integrated into various processing units and systems.
Maximum Module (mm)
5Maximum Workpiece Diameter (mm)
80 - 200
-

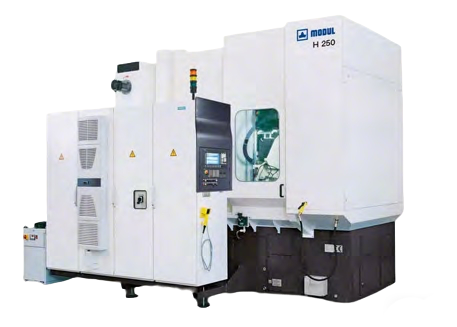

Medium-sized Hobbing Machine
H250-H400
The combination of sophisticated automation solutions with optional gantry or ring rotary manipulators meets the requirements of your various applications.
Maximum Module (mm)
5 (8)Maximum Workpiece Diameter (mm)
250 – 400
-
Large Hobbing Machine
H600-H800
The H 600 – H 800 series offers outstanding stability and rigidity. These machines are capable of all types of hobbing (axial, radial, tangential, and diagonal) and can machine spur gears, helical gears, and other gear types.
Maximum Module (mm)
12 (18)Maximum Workpiece Diameter (mm)
600-800
-
Extra-large Hobbing Machine
H1500-H2300
The H 900 – H 2300 series is designed for the production of large gears, bearing sleeves, pinions, shaft gears, and internal gears. All structures are based on modular units, such as the workpiece end face, column, etc.
Maximum Module (mm)
28Maximum Workpiece Diameter (mm)
1500-2300
-
Giant Hobbing Machine
H6000
Hydrostatic guideways
Preloaded spur gear drive, suitable for low‑speed, high‑torque applications
Direct drive, suitable for high‑speed, medium‑torque workpiece applicationsMaximum Module (mm)
30/40Maximum Workpiece Diameter (mm)
6000
