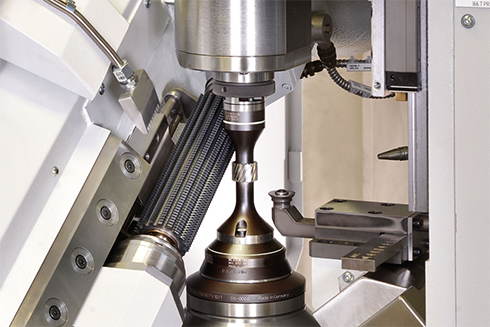

H600-H800
Workpiece diameter range: 600 mm to 800 mm.
Highly stable and rigid machine bed structure.
Optional dry cutting or wet cutting.
Worktable with direct-drive motor, available in standard and optional configurations.
Standard and custom workpiece clamping solutions to meet diverse machining requirements.
Ring-type automatic loading/unloading system.
Gear centering unit.
Compact overall design with integrated auxiliary units.
Equipped with the Siemens SINUMERIK ONE control system.
Maximum workpiece diameter | mm | 600 | 800 |
Nominal module for gear hobbing Nominal module for single‑point milling | mm | 12 (18) 18 (22) | |
Radial feed (X‑axis) | mm | 70 - 495 (10 - 435) | 70 - 595 (10 - 535) |
Axial feed (Z‑axis) | mm | 310 - 1110 | |
Tangential feed (Y‑axis) | mm | 320 (350) | |
Hob spindle power | kw | 22 (30) | |
Hob spindle speed (B‑axis) | min | 50 - 400 / 75 - 600 / 100 - 800 (75 - 600) | |
Hob head swivel angle (A‑axis) | degree | +/- 45 (+45 / -120) | |
Maximum hob diameter | mm | 210 (300) | |
Maximum shank‑type hob length | mm | 400 | |
Worktable speed (C‑axis) | min | 0,1 - 100 | |
Machine control | Siemens 840D sl | ||
CNC axes of basic machine | 6 | ||
Total weight of basic machine | kg | Approx. 22,000 | |
Dimensions of basic machine [L × W × H] | mm | Approx. 4350 x 2700 x 3550 | |
